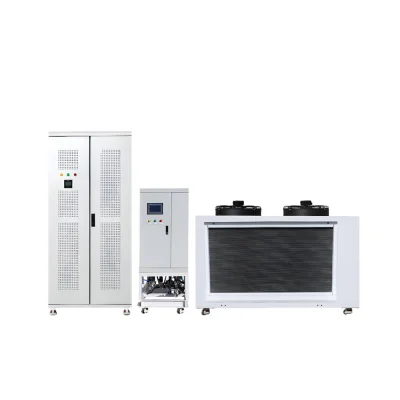

The MB-H20-A Hydro Cooling Suite supports up to 28 Antminer hydro miners with deionized water circulation, combining compact design and powerful cooling for efficient home mining.
Specifications
| MB – H20-A Tank | |
|---|---|
| Model | MB-H20-A Hydro Cooling Suit |
| Miners capacity | 28* (s19 / s21 hyd.) |
| Maximum load, kW | 200kW |
| Circulation Mode | Single Mode / Dual Mode |
| Dimensions | 120 x 70 x 180mm (Cabinet) 260 x 135 x 180mm (Dry Cooler) |
| Overall Weight | 300kg (Cabinet) 320kg (Dry Cooler) |
| Cooling | Pure Water / Soft water + Antifreeze + Corrosion Inhibitor |
| Max Inlet/Outlet Temp. | 40 / 50 °C |
| External Cooling | Dry Cooler |
| Fluid Flow Rate | 20m³/h |
| Input Voltage | 3 Phase 380-480V 50/60Hz |
| Output Voltage | 3 Phase 380-480V 50/60Hz |
| Ambient Temp | -25°C ~ 45°C |
| Design Pressure | 0.3 MPa |
| Extras | High-Quality Water Pump / All Stainless Steel / EPDM Hose / Quick Connector |
| MB-H20-A Dry Cooler | |
| Power (Main pump power) | 4.75kw |
| Rotational Speed | 2900 r/min |
| Power (Auxiliary pump power) | 0.55kw |
| Fluid Flow Rate | 20m³/h |
| Monitoring and Management | Smart PDU | PLC Control System |
| Dimensions | 120 x 70 x 180mm |
| Weight | 350kg |
| Circulation Mode | Single Mode / Dual Mode |
| Max Inlet/Outlet Temp | 40 / 50 °C |
| Fluid Flow Rate | 20 m³/h |
| Ambient Temp | -25°C ~ 45°C |
| Design Pressure | 0.3 MPa |
| Certification | CE/UL |
| Extras | High quality water pump and all stainless steel |
